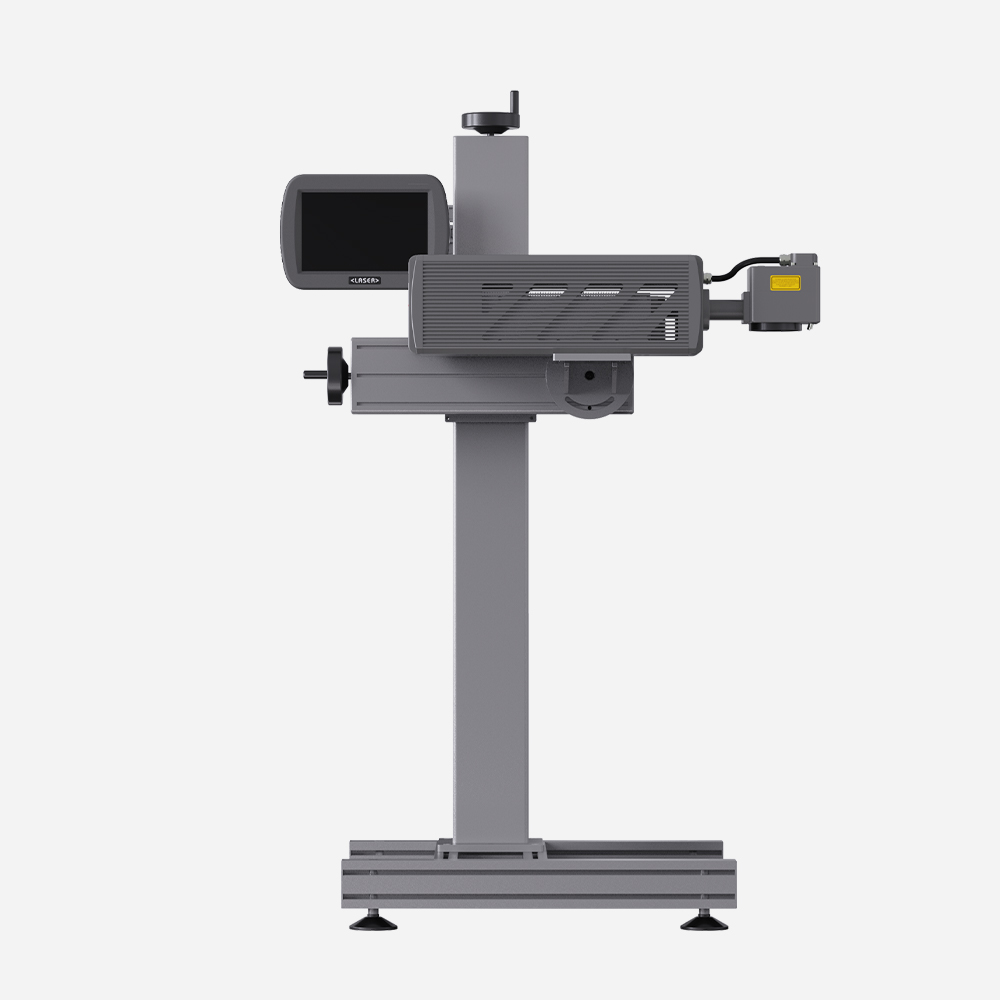

PHEZER PL4 CO2 Flying Laser Marking Machine
A compact CO2 laser marker for production lines and metal or non-metal materials.
PHEZER PL4 CO2 Flying Laser Marking Machine একটি লেজার মার্কিং মেশিন। স্থায়ী পণ্য কোড বা চিহ্নের জন্য CO2, fiber বা UV laser marking machine বাছাই করার আগে উপাদান, marking area, ক্ষমতা ও উৎপাদন লাইনের গতি নির্দিষ্ট কনফিগারেশনের সঙ্গে মিলিয়ে নিন।
Overview
The PL4 is a compact, modular flying laser marking machine. The supplier lists plastic products, electronic components, and cloth and textile products among its applications.
Key Features
- Compact modular design
- Mobile frame for relocation between production lines
- 30W, 40W, and 60W power options
- IP55 protection rating
Applications
Plastic productsElectronic componentsCloth bags and textiles
Technical Specifications
laser TypeCO2 laser
power30W / 40W / 60W
wavelength1060nm / 1020nm / 930nm
wavelength Source NoteThe supplier lists these values and units; confirm the exact laser source and wavelength configuration before ordering.
marking Area110 × 110 mm (optional)
marking SpeedUp to 12,000 mm/s
cooling SystemAir cooling
power SupplyNot specified on supplier page
laser SourceCRD / DAWEI
laser Service LifeMore than 20,000–30,000 hours (supplier-listed range)
output PowerCO2-30W: ≥38W; CO2-40W: ≥43W; CO2-60W: ≥70W
minimum Line Width0.03mm
repeat Positioning Accuracy0.01mm
machine MaterialSandblasted, oxidized aluminum
protection RatingIP55
production Line Speed0–130m/min, depending on material
Supplier reference: PHEZER PL4 CO2 product page
