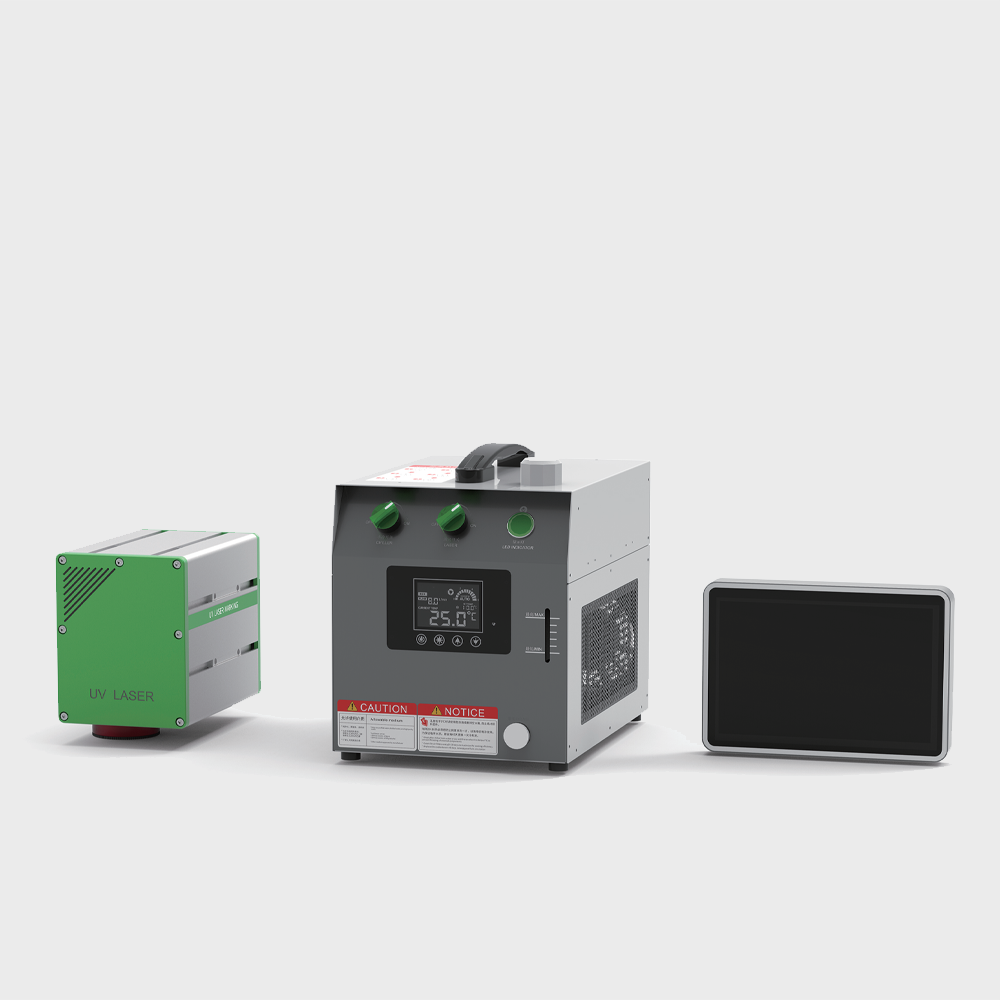

PHEZER PL3-Pro Split-type UV Laser Marking System
A split-type UV laser marking system for production-line integration.
PHEZER PL3-Pro Split-type UV Laser Marking System একটি লেজার মার্কিং মেশিন। স্থায়ী পণ্য কোড বা চিহ্নের জন্য CO2, fiber বা UV laser marking machine বাছাই করার আগে উপাদান, marking area, ক্ষমতা ও উৎপাদন লাইনের গতি নির্দিষ্ট কনফিগারেশনের সঙ্গে মিলিয়ে নিন।
Overview
The PL3-Pro uses a nanosecond ultraviolet laser generator and a split design that separates the laser head from the control unit for flexible installation.
Key Features
- Split-type modular design
- 355nm nanosecond ultraviolet laser
- Water cooling
- Production-line speed up to 200m/min, depending on material and marking content
Applications
Production-line marking
Technical Specifications
laser TypeNanosecond ultraviolet laser
powerNot specified on supplier page
wavelength355nm
marking Area100 × 100 mm (standard)
marking SpeedUp to 12,000 mm/s
cooling SystemWater cooling
power Supply220V-50Hz
marking MethodHigh-precision two-dimensional scanning
master ControlIntegrated motherboard with external 10-inch touchscreen
marking SystemP9
operating SystemLinux
maximum Power Consumption≤750W / 4A
machine Net Weight23kg
optical Path Dimensions231 × 144 × 180mm
control Box And Chiller Dimensions345 × 249 × 282mm
operating Temperature5–40°C
supported File FormatsBMP, DXF, HPGL, JPEG, PLT
supported CodesCode128A, Code128B, Code128C, Code39, Code93, EAN-13, PDF417, QR, Data Matrix, GS1 DataMatrix, Aztec, Hanxin, DotCode
Supplier reference: PHEZER PL3-Pro UV product page
