UKJET · Continuous Inkjet Printer

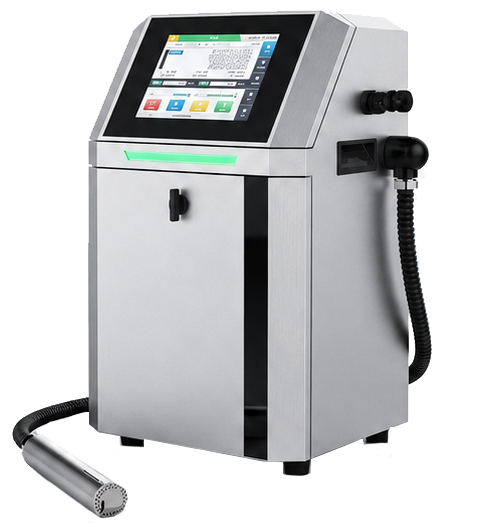

WHITE INK PRINTERUKJET G8500W Continuous Inkjet Printer
A white-ink, 5-line CIJ printer configuration with an integrated ink mixer for demanding production environments.
UKJET G8500W হলো একটি Continuous Inkjet (CIJ) date coding printer। উৎপাদনের তারিখ, মেয়াদোত্তীর্ণের তারিখ, ব্যাচ ও লট নম্বর পণ্যে ছাপার জন্য মডেলটি দেখুন। “date coding machine” বা “tarikh print machine” খুঁজলে প্রিন্টের কাজ, লাইনের গতি, কালির সামঞ্জস্য ও স্থানীয় সহায়তার সঙ্গে মডেলটি মিলিয়ে নিন।
About this model
Overview
The UKJET G8500W is a continuous inkjet printer configured for up to 5 lines, with an integrated ink mixer, a 1.5–20 mm font height range and printing speeds up to 300 m/min at 5-dot font. Printing Solution supplies UKJET CIJ printers in Bangladesh with product guidance and local technical support.
Key Features
- Up to 5 lines of non-contact CIJ printing
- White-ink configuration for high-contrast coding on dark surfaces
- Integrated ink mixer
- Printing speed up to 300 m/min at 5-dot font
- Font heights from 1.5 mm to 20 mm
- Nozzle options: 40, 50, 60 or 70 µm
- 8-inch touch-screen interface with storage for up to 1,000 messages
Technical details
Technical Specifications
- Print technology
- Continuous Inkjet (CIJ)
- Maximum printing lines
- 5
- Font dot matrix
- 5, 7, 9, 12, 16, 24, 32 or 34 dots
- Printing speed
- Up to 300 m/min (5-dot font)
- Ink colors
- Black, Blue, Red, White
- Nozzle options
- 40, 50, 60 or 70 µm
- Font height
- 1.5–20 mm
- Ink mixer
- Automatic mixing for white ink
- Viscosity detection
- Automatic
- Supported codes
- 1D codes and QR code
- 1D codes
- UPC-A/E, EAN-8/13, Code 128A/B/C, UCC/EAN-128, Code 39, I25
- 2D codes
- Data Matrix; QR code (error correction levels L, M, Q, H)
- Message storage
- 1,000 messages
- User interface
- 8-inch TFT LCD touch screen
- Connectivity
- USB, network port, RS-232; synchronizer, photoelectric sensor and alarm light
- SmartCloud
- Remote alarms, remote management, and ink/solvent level monitoring
- Languages
- Chinese, Traditional Chinese, English, Italian, German, Portuguese, Persian, Vietnamese, Polish, Russian, Arabic, and other languages
- Operating temperature
- -20°C to 50°C
- Relative humidity
- Less than 90%, non-condensing
- Power supply
- Single-phase 100–240 VAC, 50–60 Hz
- Printhead
- 258 mm long, 42 mm diameter
- Conduit length
- 3 m
- Weight
- 22 kg
Applications
- Food & Beverage
- Pharmaceutical
- Cosmetics
- Cable & Wire
- Packaging Industry
- Electronics
- Automotive Parts
- Industrial Goods
- Logistics & Shipping
- Agrochemical
- Beverage and packaging lines
- Electronics manufacturing
- Industrial product coding
- Fast-moving production lines
- Building Materials
- Household & Chemical Products
- Food Processing
- Textiles
Consumables & Service
- ink
- CIJ ink; confirm compatibility for the required substrate and application
- makeup
- CIJ makeup; confirm the correct grade for the selected ink
- solvent
- CIJ solvent; confirm compatibility before use
- note
- Contact Printing Solution for consumable compatibility and supply information.
- installation
- operator Training
- preventive Maintenance
- spare Parts
